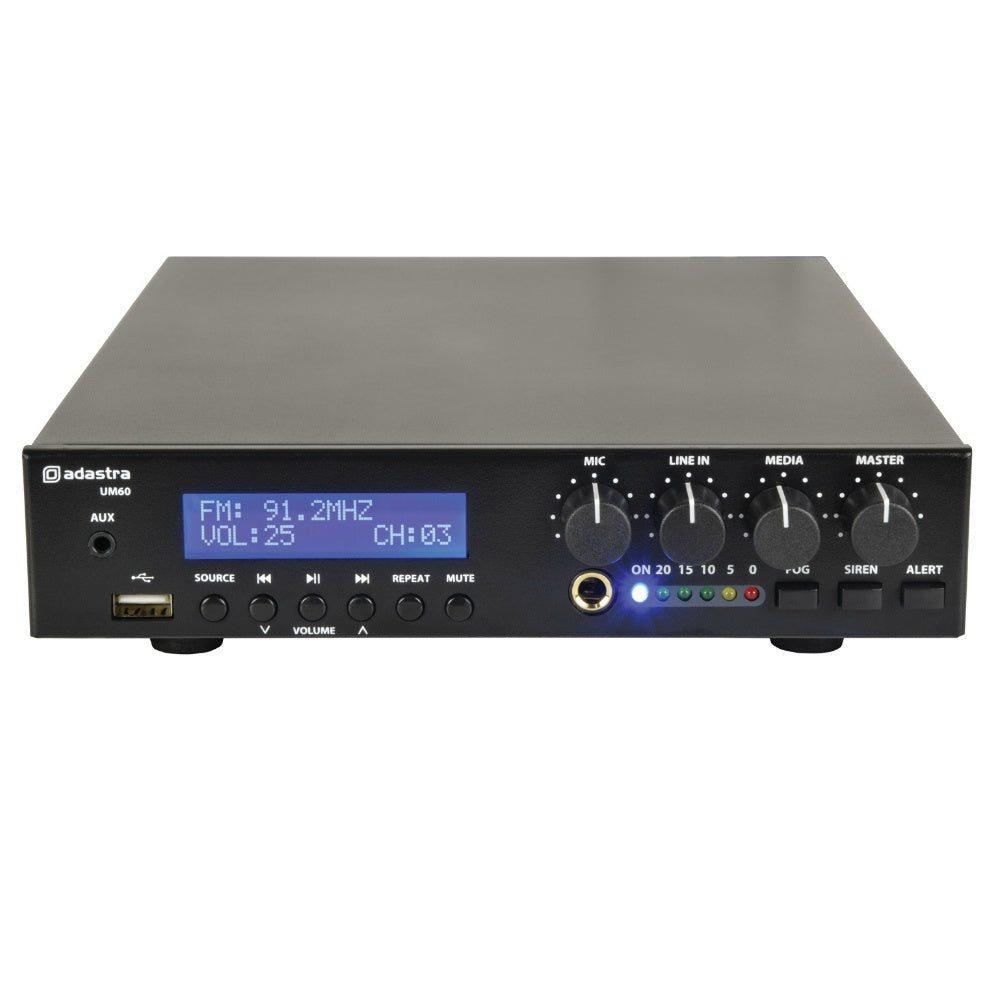

Adastra UM60 60w Installation Amplifier

£169.00
Including VAT Shipping calculated at checkout.
    DESCRIPTION

    The adastra UM60 is a 60w 100V mixer-amplifier with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution restaurants, bars or for small to medium PA installations.

    • Ultra compact form factor
    • Efficient class D amplifier design
    • Internal USB/FM/BT audio player
    • 100V line or 8 Ohms operation

    Specification

    • Power supply: 170-264Vac, 50Hz (IEC) or 24Vdc
    • Amplifier: Class D + transformer output
    • Audio source: Internal USB/FM/BT player
    • Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
    • Line output: 2 x RCA (mono)
    • Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
    • DC power: 24Vdc screw terminals
    • Mute: 24V relay contacts
    • THD<0.4% @ 1kHz
    • Input impedance: 1k Ohms (mic/line)
    • Input sensitivity: -10dB (line), -45dB (mic)
    • SNR: 80dB (line), 75dB (mic)
    • Frequency response: 100Hz - 18kHz
