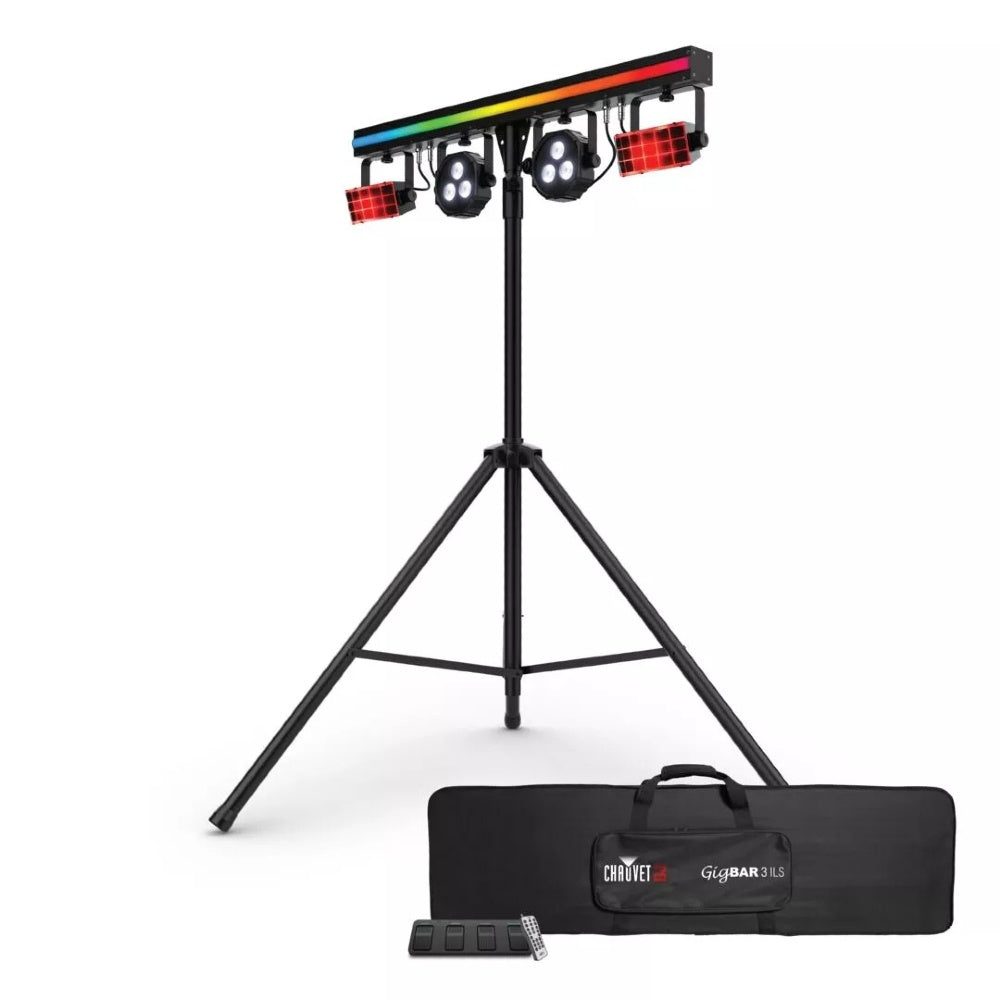

Chauvet GigBar 3 ILS Lighting System

The Chauvet DJ GigBAR 3 ILS is a complete all-in-one lighting system designed for quick, professional event setups. Combining multiple lighting effects onto a single bar, it allows DJs, entertainers and event organisers to create a full light show with minimal setup time and less equipment to transport. It is an ideal solution for mobile DJs, weddings, parties, live events and venue installations where convenience and performance are equally important.

The system combines three different lighting effects in one compact unit. Twin LED derby effects produce vibrant multi-coloured chasing beams across the dancefloor, while the integrated LED pars provide smooth colour washes for walls, stages and performance areas. A built-in LED strip adds dynamic pixel-style movement and eye-catching visual effects, helping create a more immersive and energetic atmosphere.

GigBAR 3 ILS is designed to work in both simple plug-and-play setups and more advanced lighting rigs. Full ILS compatibility allows seamless synchronisation with other ILS-enabled fixtures, making it easy to build coordinated lighting shows. Built-in D-Fi wireless support reduces the need for additional cables and external wireless hardware, allowing wireless DMX or ILS communication straight out of the box.

Control options are flexible to suit different users and event types. The system can be operated via DMX for detailed programming, or controlled using the included wireless footswitch and RF remote for fast and simple operation during live performances. Automated and sound-activated programmes are built in, allowing all lighting effects to work together in a fully synchronised show with very little setup required.

Designed with mobile entertainers in mind, the GigBAR 3 ILS includes a tripod stand and carry bags for easy transport and storage. The reversible tripod bracket also allows inverted mounting for greater positioning flexibility and cleaner installations. For users wanting to expand their setup further, the bar can support up to four additional fixtures mounted on top.

• 3-in-1 lighting system featuring LED derbies, LED pars and an LED strip mounted on a single bar
• Built-in LED strip creates dynamic pixel and eye-candy effects
• ILS compatible for synchronised lighting control with other ILS fixtures
• Supports mounting of up to four additional fixtures
• Reversible tripod bracket for inverted mounting setups
• Full-colour LCD display for simple navigation and control
• Includes tripod stand, wireless footswitch and carry bags
• Built-in automated and sound-activated programmes
• Control via display, RF remote, wireless footswitch or DMX
• Power linking support for cleaner cable management

Specifications

• DMX channels: 2, 21 or 132
• DMX connectors: 3-pin XLR
• Pars light source: 6 x quad-colour RGB + UV LEDs, 3.7W, 50,000-hour life expectancy
• LED strip light source: 74 x RGB LEDs, 5W, 50,000-hour life expectancy
• Derby light source: 6 x LEDs (2 red, 2 green, 2 blue), 3W, 50,000-hour life expectancy
• Strobe rate: 0 to 20 Hz
• Stand height: 1.5 m to 2.4 m
• Tripod leg width: 1.2 m
• Fits tripod size: 37.4 mm
• Beam angle (pars): 13°
• Field angle (pars): 24°
• Coverage angle (derby): 114°
• Coverage angle (LED strip): 174°
• D-Fi operating frequency: 2.412 to 2.484 GHz
• Cable length: 2.844 m
• Footswitch operating frequency: 433 MHz
• Footswitch maximum unobstructed distance: 30.5 m
• Footswitch battery: 9V, 300mA
• Illuminance (pars): 1,205 lux at 2 m per head
• Power linking: 18 units at 230V
• Input voltage: 100 to 240 VAC, 50/60 Hz auto-ranging
• Weight: 6 kg
• Dimensions: 1047 x 94.5 x 272 mm
• Optional controllers: ILS Command, RF Remote
