Chauvet GigBar Move ILS Lighting Bar

Instant Light Shows (ILS)
DMX lighting can be complicated, but Chauvet DJ’s Instant Light Shows (ILS) system makes it simple. With the GigBAR Move + ILS or the ILS Command acting as the central controller, you can easily create synchronised light shows across multiple fixtures without complicated programming.

Any ILS-compatible fixture can connect to the GigBAR Move + ILS or be controlled through the ILS Command. Once linked, all the lights and effects work together automatically. You can run shows using automatic, sound-activated or manual modes, and easily adjust settings such as colour, speed and other effects in real time.

All-in-One Lighting System

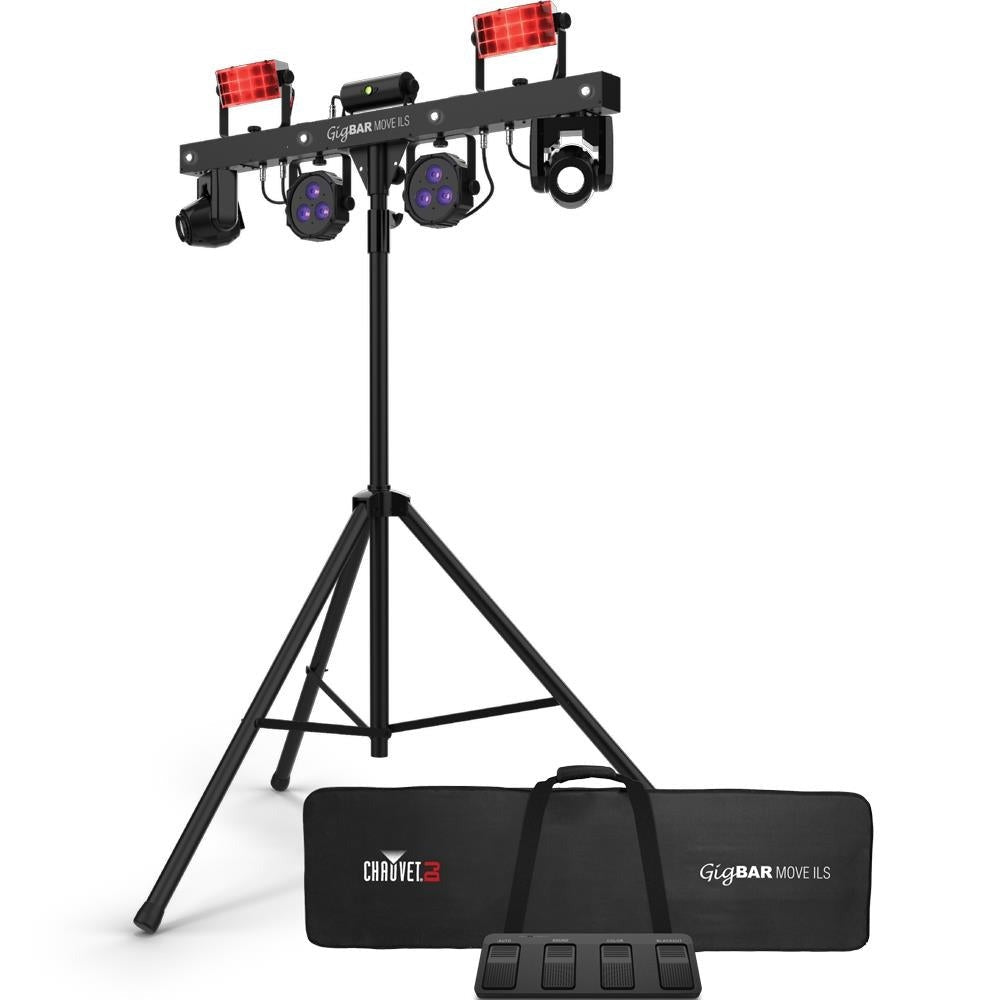

The GigBAR Move ILS delivers a complete lighting setup in a single unit. It features two moving heads, two par lights with RGB and UV colour mixing, a red and green laser, and two LED derby effects. Together these fixtures create a wide range of colours, beams and effects to transform any dance floor or stage.

The system also offers flexible control options including standalone operation, wired DMX, D-Fi wireless DMX, wireless RF remote control and footswitch operation. When combined with the ILS system, the GigBAR Move ILS can also coordinate with other compatible fixtures to create a fully synchronised lighting show without the need for complex programming.

• DMX Channels: 3, 27 or 46
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540° / 180°
• Colors (moving head): 7 + white, continuous scroll at variable speeds
• Gobos (moving head): 7 + open, continuous scroll at variable speeds
• Light Source (pars): 3 LEDs (quad-color RGB+UV) 3.5 W (1 A)
• Light Source (strobe): 4 LEDs (white & UV) 5 W (1 A)
• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A)
• Light Source (moving head): 1 LED (cool white) 10 W (2.3 A)
• Light Source (laser): 650 nm / 100 mW (red) laser diode, 532 nm / 30 mW (green) laser diode
• Strobe Rate (all effects): 0 to 20 Hz
• Beam Angle (moving head): 11°
• Beam Angle (pars): 19°
• Beam Angle (strobe): 8°
• Coverage Angle (derby): 131°
• Coverage Angle (laser): 93°
• Illuminance (pars): 1,205 lux @ 2 m (per par)
• Illuminance (moving head): 1056 lux @ 2 m (per head)
• Illuminance (strobe): 86 lux @ 2 m (per LED)
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
• Power Linking: 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 79 W, 0.6 A @ 230 V, 50 Hz
• Compliance: CE, RoHS, UKCA, FDA, FCC
• Weight: 23.4 lb (10.7 kg)
• Size: 43 × 5.7 × 17.7 in (1100 × 144 × 449 mm)
• Included Controllers: RF remote and wireless footswitch
