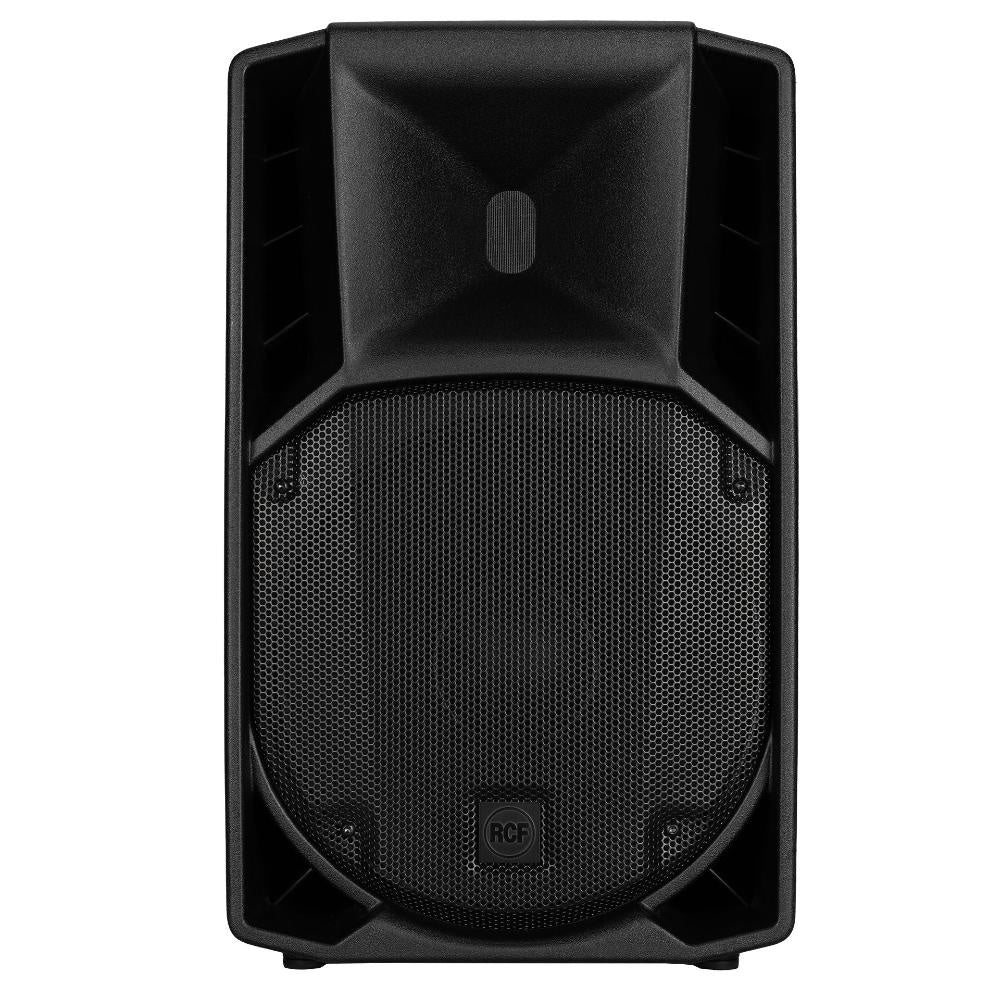

The RCF ART 712-A MK5 stands out as a truly exceptional product in its class.
Featuring a 1.75" compression driver, it delivers outstanding vocal clarity and powerful sound projection. The 12” woofer ensures a highly linear response with deep, accurate low-frequency control. Built with cutting-edge manufacturing technology, each transducer guarantees superior performance and reliability.
Driven by a 1400-watt amplifier and an advanced DSP controller, the system handles crossover, equalization, phase alignment, soft limiting, and speaker protection — ensuring consistent, high-quality sound in any setting.
Specifications:
Frequency Response: 50 Hz – 20,000 Hz
Maximum SPL @ 1m: 129 dB
Coverage Angle (H x V): 90° x 60°
Transducers
Compression Driver: 1 x 1.0", 1.75" voice coil
Woofer: 1 x 12", 2.5" voice coil
Input / Output Section
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu
Microphone Input Sensitivity: -32 dBu
Processor Section
Crossover Frequency: 1600 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, MIC/Line
Power Section
Total Power: 1400 W Peak
High Frequencies: 400 W Peak
Low Frequencies: 1000 W Peak
Cooling: Convection
Power Connection: VDE
Standard Compliance
Safety Certification: CE Compliant
Physical Specifications
Cabinet Material: PP Composite
Hardware: 2 x M10
Handles: 1 on top, 1 on each side
Pole Mount: 35 mm insert
Grille: Steel
Color: Black
Size / Weight
Height: 637 mm / 25.08 in
Width: 387 mm / 15.24 in
Depth: 363 mm / 14.29 in
Weight: 17.8 kg / 39.24 lbs
