The QWM 1960 BP v3 is a professional UHF bodypack wireless system designed for flexibility and reliability across a wide range of applications. Using true diversity technology, it delivers stable reception and clear audio while minimising the risk of interference or dropouts.
The compact bodypack transmitter features an OLED display for clear status monitoring, along with simple IR sync for fast and accurate pairing with the receiver. Powered by two AA batteries, it provides extended operating time, making it ideal for long sessions on stage, in conferences, or at live events.
Supplied with both a discreet lapel microphone and a lightweight headworn microphone, the QWM 1960 BP v3 is perfect for hands-free presentations, theatre, fitness instruction, or public speaking. A guitar cable option is also included, offering musicians a reliable wireless connection for instruments.
Operating in UK-approved UHF frequency ranges, the system is suitable for both licence-free use on Channel 70 and licensed operation on Channel 38 for larger setups. Built with durability and ease of use in mind, the QWM 1960 BP v3 provides professional performance in a compact, versatile format. The CH70 frequency band may accommodate up to 3 or 4 microphones operating simultaneously, making this ideal for most applications.
If you're planning to deploy two complete systems together, the CH38 version offers greater microphone capacity. A dependable choice for DJs, live events, and professional sound reinforcement.

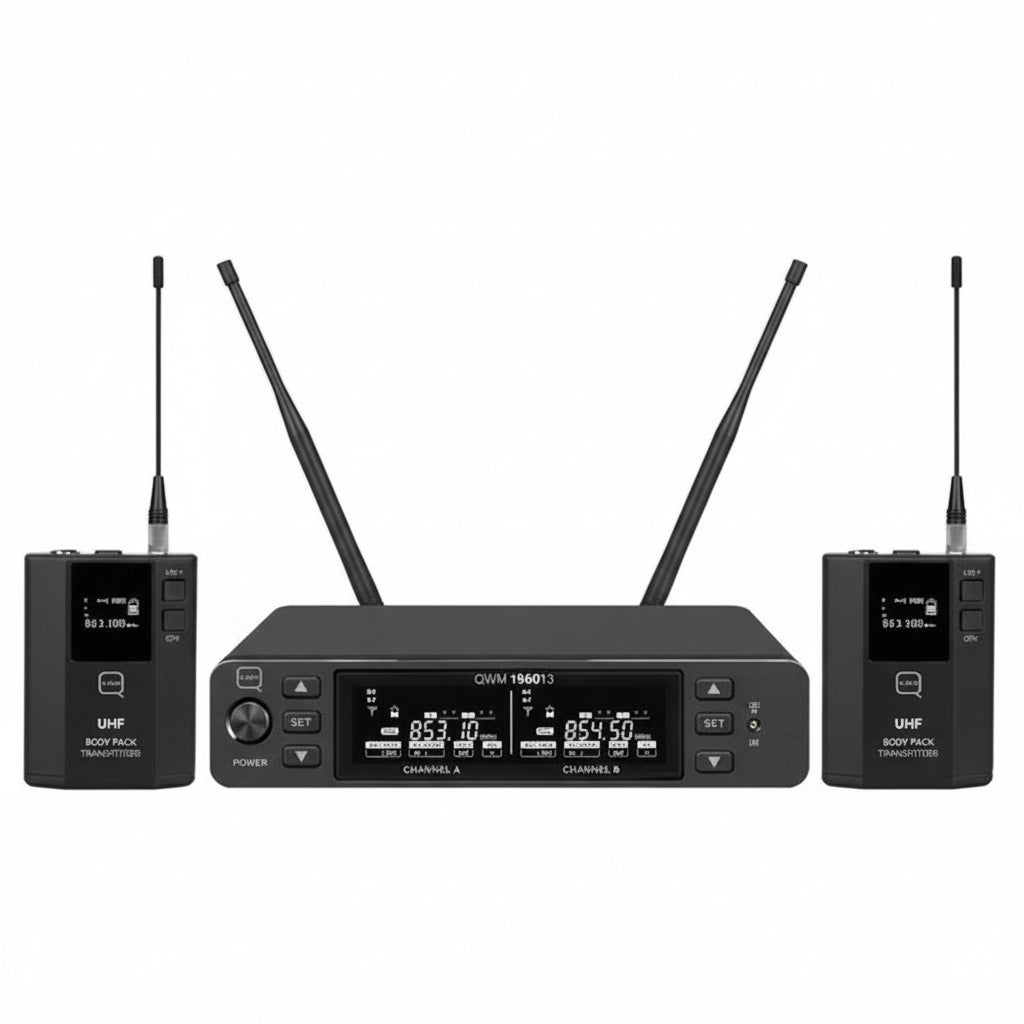

- Multi-channel UHF PLL receiver and 2 bodypack transmitters
- Large backlit display with multiple status indicators
- ACT infrared pairing of bodypacks to receiver
- 2 x balanced XLR outputs
- 1 x unbalanced 6.35mm jack mixed output
- Includes receiver, 2 x bodypacks, 2 x headset mics,
- 2 x lavalier/lapel mics 2 x guitar/instrument leads,
- plus batteries, PSU and audio cable
- High efficiency battery consumption design
- 2 x adjustable/removable high gain antenna
- Two systems can be connected for 19 inch rackmount
- Working distance: 50 meters
- Continuous usage: 5 hours
Key Features:
- UHF true diversity technology ensures stable, interference-free wireless performance.
- Compact bodypack transmitter with a robust clip for secure and comfortable attachment.
- Clear OLED display shows frequency, channel, battery status, and system settings.
- Simple IR sync allows fast and accurate pairing between transmitter and receiver.
- Wide frequency response (30Hz–20kHz ±2dB) delivers clear, natural, and detailed audio.
- High dynamic range (96dB) and low distortion (<0.1%) provide professional sound quality.
- Operates on UK-approved UHF frequencies: Channel 70 (863–865MHz, licence-free) or Channel 38 (606–614MHz, licensed).
- Receiver outputs include one 6.35mm unbalanced jack and two balanced XLR connections.
- Powered by two AA batteries, offering over 5 hours of continuous operation.
- Supplied with lapel microphone, headworn microphone, and guitar cable for versatile use.
- TA4 (4-pin mini XLR) input compatible with a wide range of microphones and instruments.
- RF and AF indicators on the receiver provide real-time monitoring of signal and audio levels.
- Auto frequency scan function quickly locates the clearest available channel.
- Durable construction designed for stage, conference, fitness, theatre, and live event use.
